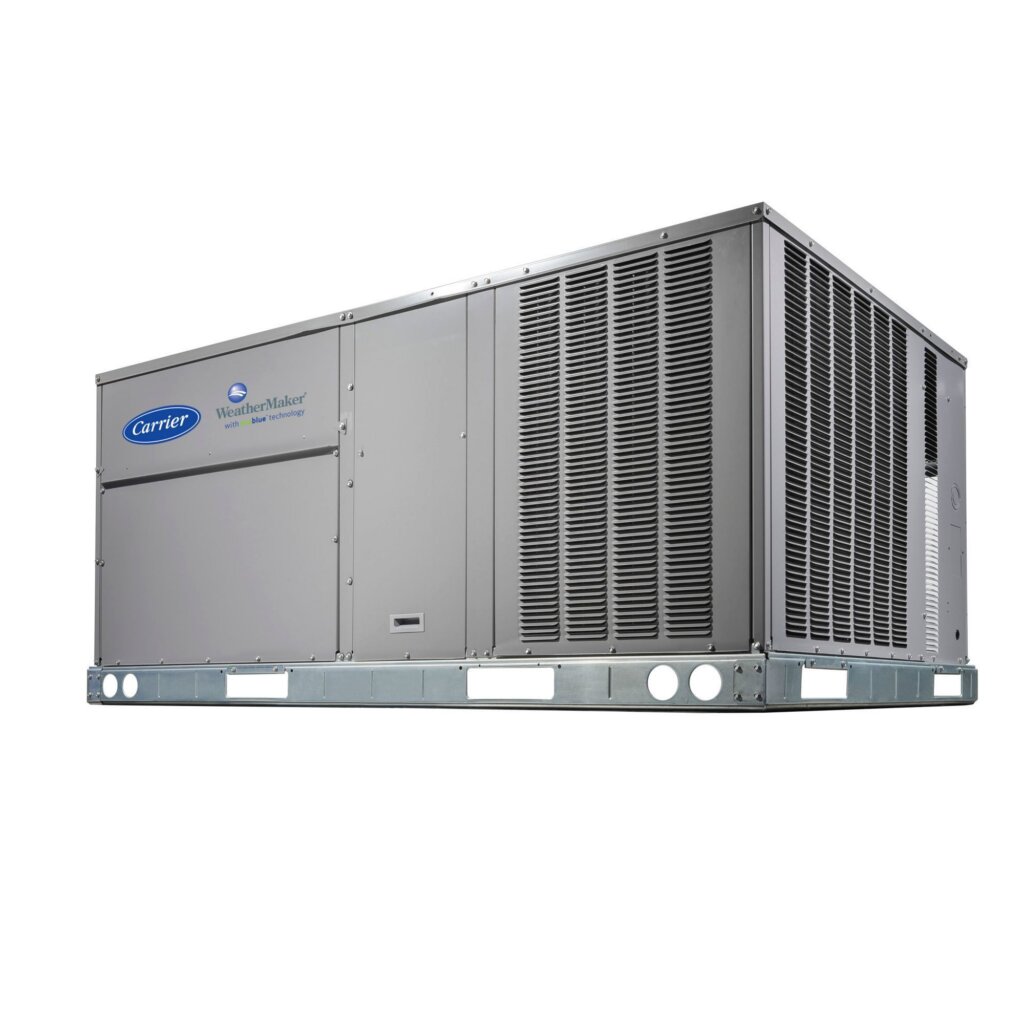

Carrier Weathermaker Rooftop Unit
Suggested Retail Price From: $
Description
48FCFC06A2A3-0A0A0
48 = Gas Heat Packaged Rooftop / Unit Heat Type
FC = 13.4 SEER2 Standard Efficiency, sizes 04-06 / Model Series – WeatherMaker®
F= High Gas Heat / Heat Size
C = Std One Stage Cooling Models, 1-phase voltage (SEER2) / Refrig. Systems Option
06 = 5 tons / Cooling Tons
A = None / Sensor Option
2 = Direct Drive – EcoBlue – Medium Static / Indoor Fan Option
A = Al/Cu – Al/Cu / Coil Options (Outdoor – Indoor)
3 = 208/230-1-60 / Voltage
– = Factory Design Revision / Design Revision
0 = Electromechanical Controls – can be used with field-installed W7212 EconoMi$er® IV (Non-Fault Detection and Diagnostic) / Base Unit Controls
A = None / Intake / Exhaust Options
0 = None / Service Option
A = None / Electrical Option
0 = Standard / Packaging & Seismic Compliance
The New Carrier WeatherMaker® rooftop units (RTU) with EcoBlue™ Technology
| Attributes | |
|---|---|
| AFUE | 81 |
| Air Flow Direction | Convertible |
| BTU Input | 130,000 |
| BTU Output | 106,000 |
| Blower Motor HP | 1 11/25 BHP |
| Blower Motor RPM | 239-2,390 |
| Blower Motor Speeds | Variable |
| Blower Motor Type | ECM (Electronically Commutated Motor) |
| Blower Wheel Diameter | 16 3/5″ |
| Brand | Carrier® |
| CFM | 1,500-2,500 |
| Color | Gray |
| Compressor Type | Scroll |
| Condenser Coil Fins per Inch (FPI) | 18 |
| Condenser Fan Blade Diameter | 23 |
| Condenser Fan Motor Qty | 1 |
| Condenser Motor HP | 1/4 |
| Condenser Motor RPM | 1,100 |
| Condenser Motor Speeds | 1 |
| Condenser Motor Type | PSC (Permanent Split Capacitor) |
| Cooling Capacity | 58,500 |
| Country of Origin | MEX |
| Cycle/Hertz | 60 Hz |
| Drain Connection Size | 3/4″ |
| Drive Type | Direct |
| EER2 | 11.5 |
| Energy Star Rated | NO |
| Evaporator Coil Fins per Inch (FPI) | 15 |
| Evaporator Coil Metering Device | Orifice |
| Fuel Type | Natural Gas |
| Gas Connection Size | 1/2″ |
| Gas Connection Type | NPT |
| Ignition Type | Direct Spark (DSI) |
| Locked Rotor Amps (LRA) | 150 |
| Maximum Overcurrent Protection (MOCP) | 60 |
| OPT Code | 1P48FCFC06A2A3-0A0A0 |
| Outdoor Air Filter Size (OA) in Inches (W x H x D) | 20 x 24 x 1 |
| Phase | Single |
| Product Family | 48FC |
| Prop 65 | YES |
| Refrigerant | R-410A |
| Return Air Filter Size (RA) in Inches (W x H x D) | (2) 16 x 25 x 2 |
| SEER2 | 13.6 |
| Sound Level (dBA) | 79 |
| Stages Cooling | 1 |
| Thermal Efficiency | 81% |
| Tier | WeatherMaker® |
| Tonnage | 5 |
| UPC | See Optical |
| Voltage | 208-230 VAC |
