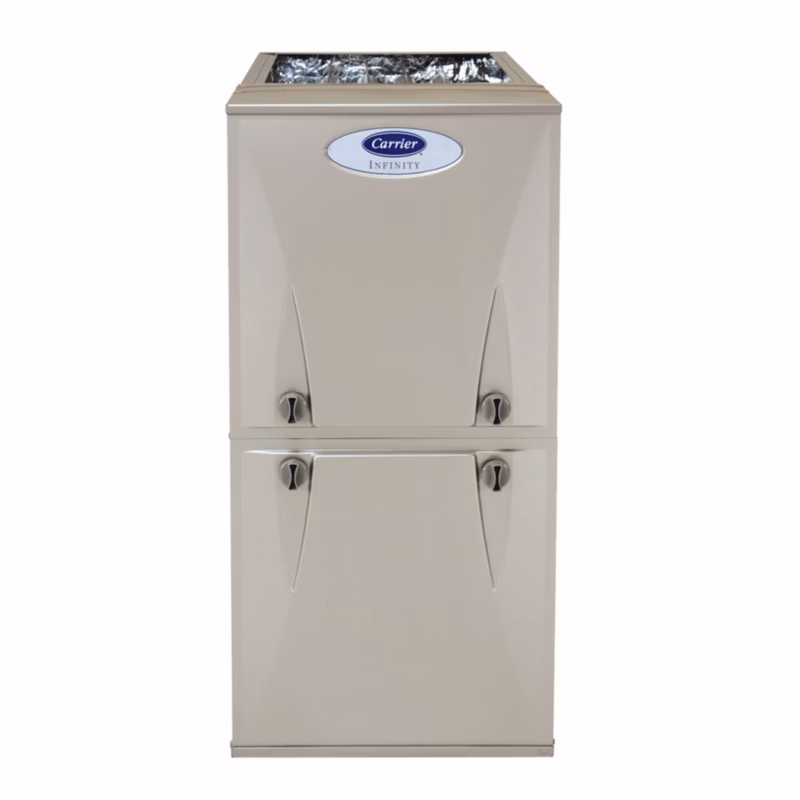

Carrier® Infinity® Furnace
Suggested Retail Price From: $
Description
59MN7C080C17–14
59= 90%+ Condensing / Gas Furnace
M = Modulating / Heating Stages
N = Infinity / Tier
7 = 97% / Min. AFUE/NOx
C = Major Series
080 = 80,000 BTU / Heating Input
C = Constant Airflow Variable- Speed (VCA) ECM / Motor Type
17 = 17.5″ / Width
— = N/A
14 = 1400 CFM / Airflow
The 59MN7C Multipoise Variable-Capacity Condensing Gas Furnace features the modulating Infinity® System. The innovative modulating gas valve is at the heart of this furnace’s quiet operation, along with the constant airflow variable-speed Infinity ECM blower motor and variable-speed inducer motor. This furnace also provides 3.5 times tighter temperature control than single stage furnaces. With an Annual Fuel Utilization Efficiency (AFUE) up to 98.5%, this Infinity gas furnace provides exceptional savings over standard furnaces as well.
| Attributes | |
|---|---|
| AFUE | 95-97.4 |
| Air Flow Direction | Multi-Position |
| BTU Input | 32,000-80,000 |
| BTU Output | 31,000-78,000 |
| Blower Motor HP | 3/4 |
| Blower Motor RPM | 300-1,300 |
| Blower Motor Speeds | Variable |
| Blower Motor Type | ECM (Electronically Commutated Motor) |
| Blower Wheel Diameter | 11″ |
| Blower Wheel Width | 8″ |
| Brand | Carrier® |
| CFM | 1,400 |
| CFM Heating | 510-1,220 |
| Cabinet Width | 17.5 |
| Color | Gray |
| Country of Origin | USA |
| Cycle/Hertz | 50/60 Hz |
| Energy Star Rated | YES |
| FER Compliant | YES |
| Filter Size | 16″ x 25″ x 3/4″ |
| Fuel Type | Natural Gas |
| Full Load Amps | 8.8 |
| Furnace Type | Gas |
| Gas Connection Size | 1/2″ |
| Gas Connection Type | NPT |
| Ignition Type | Hot Surface (HSI) |
| Includes Filter Rack | NO |
| Maximum Overcurrent Protection (MOCP) | 15 |
| OPT Code | 1P59MN7C080C17–14 |
| Phase | Single |
| Product Family | 59MN7C |
| Prop 65 | YES |
| Stages Heating | Modulating |
| Tier | Infinity™ |
| UPC | See Optical |
| Voltage | 115 VAC |
* Pricing may vary based on current market pricing at the time of sale
