Posted in Carrier, Ducted Heat Pumps
Series/Models: MODEL 38000 — Ducted + “Crossover Heat Pumps”
Suggested Retail Price From: $
Description

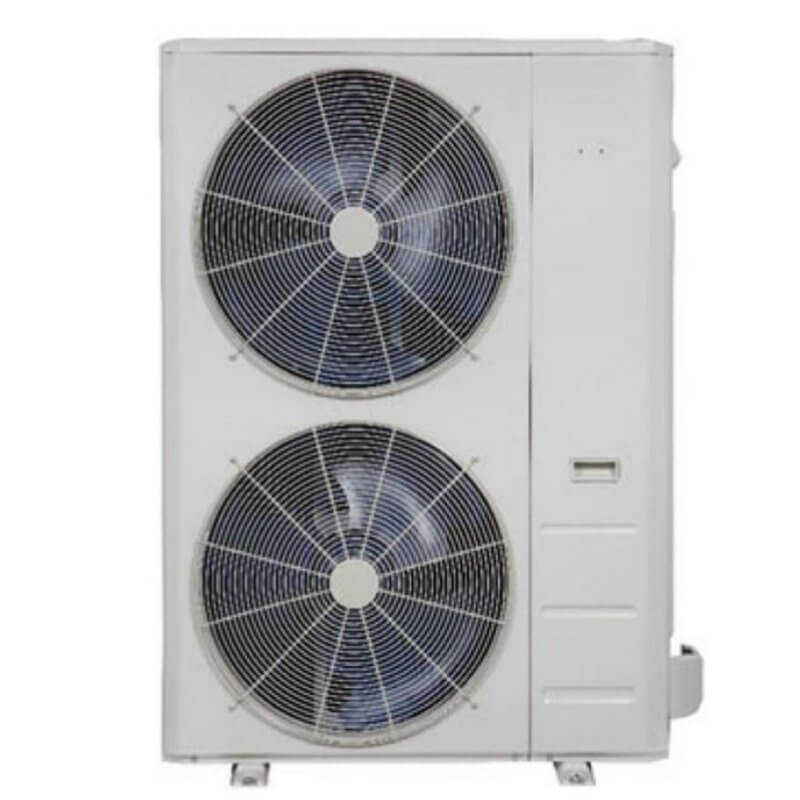

Crossover 36000 BTU Up to 15.8 SEER2 High Heat Capable Heat Pump Condensing Unit (208/230-1)
STANDARD FEATURES
- Variable Speed (Inverter)
- Factory installed Base Pan Heater
- Factory installed Crankcase Heater
- Low Voltage Controls
- Auto-Restart function
- Condenser High Temp Protection
- Modes: Cool, Heat, Dry, Fan, Auto
- Quiet operation
- Anti-corrosive fin coating
| Attributes | |
|---|---|
| Brand | Carrier®, Bryant®, Payne® |
| CFM | 4,500 |
| Color | White |
| Compressor Type | Rotary |
| Condenser Coil Fins per Inch (FPI) | 18 |
| Condenser Fan Blade Diameter | 21.8 |
| Condenser Fan CFM | 4500 |
| Condenser Fan Discharge | Horizontal |
| Condenser Fan Motor Qty | 2 |
| Condenser Motor HP | 1/9 |
| Condenser Motor RPM | 650-850 |
| Condenser Motor Speeds | 3 |
| Condenser Motor Type | ECM (Electronically Commutated Motor) |
| Cooling Capacity | 12,000-47,400 |
| Cooling Rated Capacity (Btu/h) | 36000 |
| Country of Origin | CHN |
| Cubic Measurement | 18.4862 |
| Cycle/Hertz | 60 Hz |
| EER | 10.4 |
| EER2 | 9.8-12.4 |
| Energy Star Rated | YES |
| Full Load Amps | 2.4 |
| HSPF2 | 9.5 |
| Heating Capacity | 9,000-57,200 |
| Heating Capacity @ 5 deg | 34500 |
| High Heat | YES |
| Inverter | YES |
| Liquid Line Fitting Type | Flare |
| Liquid Line Size (OD) | 3/8″ |
| Maximum Overcurrent Protection (MOCP) | 50 |
| Maximum Piping Height | 98′ |
| Maximum Piping Length | 213′ |
| Metering Device | EEV – Electronic Expansion Valve |
| Number of HVAC Zones | 1 |
| OPT Code | 1P38MURAQ36AB3 |
| Phase | Single |
| Product Family | 38MURA |
| Prop 65 | YES |
| Rated Current Amps (RCA) | 24 |
| Rated Load Amps (RLA) | 32 |
| Refrigerant | R-410A |
| SEER | 18 |
| SEER2 | 15.8-18 |
| Sound Level (dBA) | 64 |
| Stages Cooling | Variable |
| Stages Heating | Variable |
| Suction Line Fitting Type | Flare |
| Suction Line Size (OD) | 3/4″ |
| Tier | Performance™ |
| Tonnage | 3 |
| UPC | See Optical |
| Voltage | 208-230 VAC |
